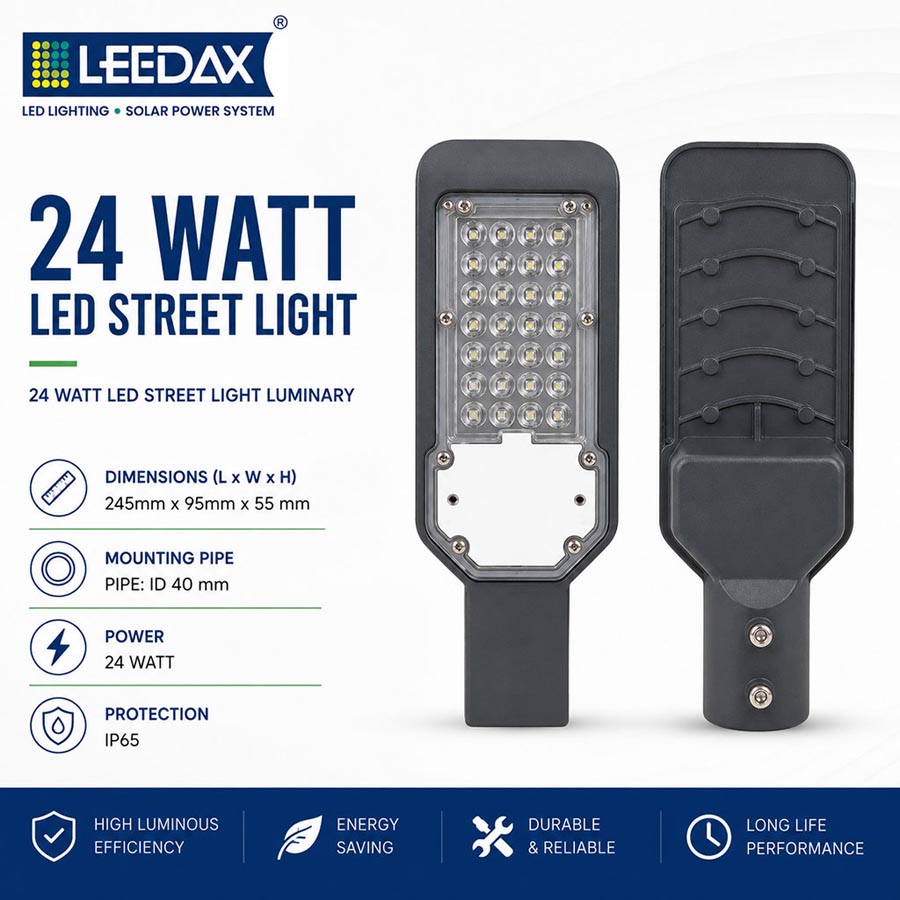

The LEEDAX 24 Watt LED Street Light Luminary, Model LXSTLLP24BX-LN, is a compact and energy-efficient outdoor lighting solution designed for low-to-medium intensity street and area lighting requirements. As one of the lower-wattage options in the LEEDAX LED Street Light range, this 24 Watt LED Street Light provides a practical balance of illumination, energy efficiency, reliability and affordability for applications where high-lumen output is not required.
Manufactured in India under the LEEDAX brand, the 24W LED Street Light incorporates LM80-certified LED technology housed in a rugged aluminium pressure die-cast body. This construction is designed to provide durability for outdoor installations while supporting effective thermal management of the internal LED components. The fixture is designed for pole-mounted installation, making it suitable for residential roads, housing societies, townships, institutional campuses, rural roads and other outdoor areas.
The LEEDAX 24 Watt LED Street Light is particularly useful where lighting designers and project contractors require controlled illumination across shorter road spans, narrow lanes and low-traffic areas. Its low power consumption makes it an attractive option for large-scale projects where controlling electricity consumption and operating costs is important.
The luminary supports a 145–265V AC input voltage range, power factor above 0.9 and THD below 10%. It also provides over-voltage protection up to 440V AC. Optional IP65/IP66 protection provides additional protection against dust and moisture in outdoor installations.
With 3000K, 4000K, 5000K and 6500K colour temperature options and CRI greater than 80, the LEEDAX 24W LED Street Light offers flexibility for different lighting environments.
| Item | LED Street Light Luminary |
| Model Number | LXSTLLP24BX-LN |
| System Watt | 24 Watts |
| Input | 230 Volt AC |
| Input Voltage Range | 145 – 265 Volt AC |
| Over Voltage Protection | Up to 440 Volt AC |
| Power Factor | >0.9 |
| THD (Total Harmonic Distortion) | Less than 10% |
| Body | Aluminum Pressure Die Cast |
| Mounting | On Pole |
| Color Temperature | 3000K / 4000K / 5000K / 6500K |
| LED Certification | LM80-Certified LED |
| CRI (Color Rendering Index) | >80 |
| Covering | PC Lens |
| IP Protection | IP65 / IP66 (Optional) |
| Manufacturer/Make | LEEDAX |
| Country of Origin | Made in India |
| Tolerance (+/-) | 10% on all above parameters |
The LEEDAX 24 Watt LED Street Light is designed with a combination of low power consumption, reliable LED technology, durable construction and flexible operating characteristics for residential, municipal, institutional and outdoor lighting applications.
Low-Wattage Energy-Efficient Design
With a system power of 24 Watts, the luminary is designed for applications where controlled electricity consumption is important. Its low-wattage configuration makes it particularly suitable for internal roads, narrow lanes and low-traffic outdoor areas.
LM80-Certified LED Technology
The fixture uses LM80-certified LED technology, supporting consistent LED performance and dependable lumen maintenance over the operating life of the product.
Aluminium Pressure Die-Cast Body
The rugged aluminium pressure die-cast housing provides a durable structure for outdoor installation while supporting thermal management of the LED components.
Wide Input Voltage Range
The 24W LED Street Light supports an input voltage range of 145–265V AC, allowing operation across varying electrical supply conditions.
Efficient Electrical Performance
With a power factor greater than 0.9 and THD below 10%, the luminary is designed for efficient electrical operation.
Over-Voltage Protection
The product provides over-voltage protection up to 440V AC, offering additional protection under specified electrical conditions.
Multiple Colour Temperatures
The 24 Watt LED Street Light is available in 3000K, 4000K, 5000K and 6500K, providing flexibility for different outdoor lighting requirements.
High Colour Rendering
A CRI above 80 supports improved colour visibility and more natural rendering of objects and surroundings.
Optional IP65/IP66 Protection
The optional IP65/IP66 protection makes the luminary suitable for outdoor environments requiring protection against dust and moisture.
Pole-Mounted Design
The fixture is designed for on-pole installation, making it suitable for standard street-lighting infrastructure.
Lightweight & Practical
Its compact, low-wattage configuration makes it a practical choice where excessive lighting capacity would result in unnecessary energy consumption.
Made in India
The LEEDAX 24 Watt LED Street Light is manufactured under the LEEDAX brand in India, providing a locally manufactured LED street lighting solution.
The LEEDAX 24 Watt LED Street Light Luminary provides a combination of low energy consumption, dependable performance, durable construction and cost-effective operation, making it suitable for projects where efficient street lighting is a priority.
The most important benefit of the 24W configuration is its low power consumption. For residential societies, townships, rural roads and municipal projects involving a large number of lighting points, selecting an appropriately sized low-wattage luminary can help control ongoing electricity consumption.
The LM80-certified LED source supports consistent LED performance and dependable lumen maintenance. This makes the product suitable for lighting projects where long-term reliability and reduced maintenance are important considerations.
The luminary’s power factor above 0.9 supports efficient electrical power utilization, while THD below 10% helps maintain controlled electrical performance. Its 145–265V AC input voltage range provides flexibility in areas where grid voltage may fluctuate.
Another important advantage is its rugged aluminium pressure die-cast body, which provides a durable enclosure for outdoor operation. Optional IP65/IP66 protection provides additional resistance against dust and moisture, supporting use in outdoor road and area lighting environments.
The availability of 3000K, 4000K, 5000K and 6500K colour temperatures allows users to select a suitable lighting appearance for residential, institutional, rural or commercial applications. CRI above 80 further supports good colour visibility.
Because of its low power rating, the 24W luminary is also suitable for solar-powered street lighting systems, where lower lighting loads can be beneficial when determining solar panel and battery requirements.
For electrical contractors, housing societies, government departments, Panchayats, real estate developers and facility-management teams, the LEEDAX 24 Watt LED Street Light offers a cost-effective, energy-efficient and Made in India lighting solution.
The LEEDAX 24 Watt LED Street Light is designed for lower-lux and shorter-span lighting requirements across residential, rural, municipal, institutional, commercial and outdoor applications.
Residential Colonies & Housing Societies
The 24W LED Street Light is well suited for internal roads, narrow lanes and circulation roads within residential colonies and housing societies, where high-wattage street lights may be unnecessary.
Gated Communities & Townships
Township developers can use the luminary along internal roads, pathways and community circulation areas requiring practical and energy-efficient lighting.
Rural & Village Roads
The low-wattage configuration makes the product suitable for rural and village street lighting projects, including low-traffic roads and lanes.
Parks & Gardens
Parks, gardens and recreational areas can use the 24 Watt Street Light for pathways, internal circulation areas and pedestrian zones requiring moderate illumination.
Small Parking Areas
The fixture can be used in small parking areas, society compounds and confined outdoor parking zones where lower-wattage lighting is appropriate.
Schools, Colleges & Hospitals
Institutional campuses can use the 24W LED Street Light for compound roads, internal pathways, boundary areas and access routes.
Municipal Lanes & Bylanes
Low-traffic municipal lanes and bylanes can benefit from the compact wattage where a 70W or 100W street light would provide unnecessary lighting capacity.
Government & PWD Projects
The luminary can be considered for government tenders, Panchayat projects, municipal projects and PWD applications specifying low-wattage LED street lighting fixtures.
Solar Street Lighting
The 24W power rating makes the luminary suitable for solar-powered street lighting systems, particularly where smaller solar panels and battery systems are being considered.
Real Estate Development Projects
Real estate developers can use the product for internal roads, compound areas, pathways and boundary lighting in residential and township developments.
Facility & Maintenance Applications
Facility-management teams can use the 24W LED Street Light as an energy-efficient alternative when replacing conventional street lighting fixtures in suitable applications.
Overall, the LEEDAX 24 Watt LED Street Light Luminary is particularly suitable for residential societies, township roads, rural roads, municipal lanes, parks, institutional campuses, small parking areas and solar street lighting systems where low power consumption and practical illumination are important.
